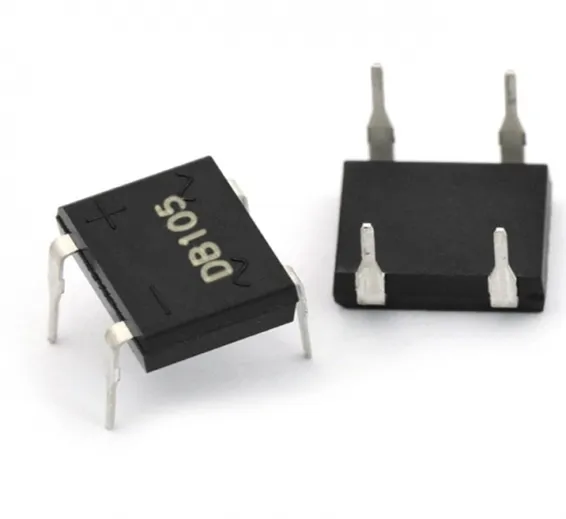

1Amp 1000V DB105 Bridge Rectifier IC In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SKU: DBS 154,TMD,Th,KRT

Rs.10 Rs. 13
FEATURES

* Good for automation insertion * Surge overload rating – 40 amperes peak * Ideal for printed circuit board * Reliable low cost construction utilizing molded * Glass passivated device * Polarity symbols molded on body * Mounting position: Any * Weight: 1.0 gram

Specifications Not what you?re looking for? Select the attributes you require, then click the button below Bridge Type Single Phase Peak Average Forward Current 1A Peak Reverse Repetitive Voltage 1000V Mounting Type Through Hole Package Type DB Pin Count 4 Configuration Single Maximum Operating Temperature 150 ?C Minimum Operating Temperature -55 ?C Peak Forward Voltage 1.1V Peak Reverse Current 500?A Length 8.8mm Height 3.4mm Junction Capacitance 25pF Width 6.5mm Dimensions 8.8 x 6.5 x 3.4mm Package Include:

1X1Amp 1000V DB105 Bridge Rectifier IC
