Semiconductor ICs

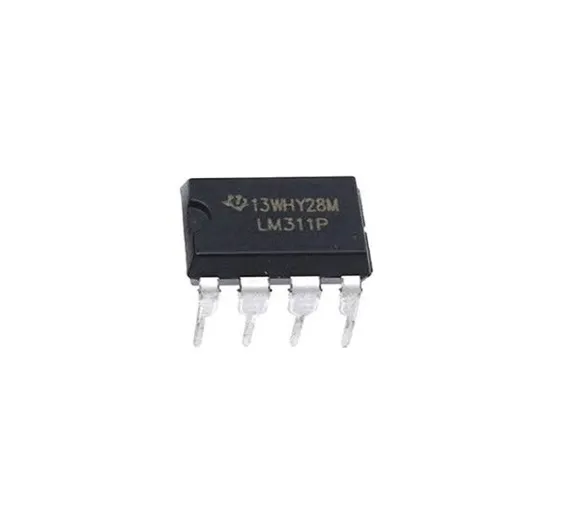

LM311 Comparator IC in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SKU: DBS28,TMD20,Th5,KRT

Rs.40 Rs. 50

The LM111, LM211, and LM311 devices are single high-speed voltage comparators. These devices are designed to operate from a wide range of powersupply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input. Features 1 • Fast Response Time: 165 ns • Strobe Capability • Maximum Input Bias Current: 300 nA • Maximum Input Offset Current: 70 nA • Can Operate From Single 5-V Supply • Available in Q-Temp Automotive– High-Reliability Automotive Applications – Configuration Control and Print Support – Qualification to Automotive Standards • Desktop PCs • Body Control Modules • White Goods • Building Automation • Oscillators • Peak Detectors
