25Q128 SPI EPROM EEPROM Memory Flash Chip In Pakistan
25Q128 SPI EPROM EEPROM MEMORY FLASH CHIP in Pakistan
Winbond’s W25X and W25Q SpiFlash® Multi-I/O Memories feature the popular Serial Peripheral Interface (SPI), densities from 512K-bit to 512M-bit, small erasable sectors and the industry’s highest performance. The W25X family supports Dual-SPI effectively doubling standard SPI clock rates. The W25Q family is a “superset” of the 25X family with Dual-I/O and Quad-I/O SPI for even higher performance. Clock rates up to 104MHz achieve an equivalent of 416MHz (50M-Byte/S transfer rate) when using Quad-SPI. This is more than eight times the performance of ordinary Serial Flash (50MHz) and even surpasses asynchronous Parallel Flash memories while using fewer pins and less space. Faster transfer rates mean controllers can execute code (XIP) directly from the SPI interface or further improve boot time when shadowing code to RAM. Additionally, some SpiFlash devices offer the new Quad Peripheral Interface (QPI) supporting true Quad Commands for improved XIP performance and simpler controller circuitry. Additionally, new ultra-small form factor packages are ideal for space constrained mobile and handheld applications.

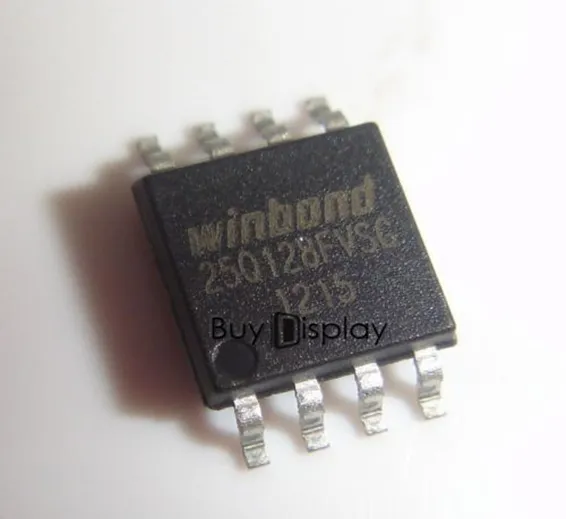

Leading the Serial Flash Market in unit sales and revenue, Winbond TS16949 certified AEC-Q100 qualified memories now support automotive applications. The automobile has transformed into the most sophisticated electronic device in the market. Digital displays in automotive dashboards provide more information about the car and improve safety. Instant-on and real-time 2D/3D image rendering is achieved with fast processors and SpiFlash memories. ADAS (Advanced Driver Assist Systems), comfort, entertainment, and navigation is now available in the center console and this is addressed with SpiFlash memories using small packages for space-constrained systems and high density for advanced applications.The W25Q128FV (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power,sop8 package. The W25Q128FV offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 4mA active and 1¦ÌA for power-down. All devices are offered in space-saving packages. The W25Q128FV array is organized into 65,536 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q128FV has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. The W25Q128FV support the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI as well as 2-clocks instruction cycle Quad Peripheral Interface (QPI): Serial Clock, Chip Select, Serial Data I/O0 (DI),I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 104MHz are supported allowing equivalent clock rates of 208MHz (104MHz x 2) for Dual I/O and 416MHz (104MHz x 4) for Quad I/O when using the Fast Read Dual/Quad I/O and QPI instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The Continuous Read Mode allows for efficient memory access with as few as 8-clocks of instruction-overhead to read a 24-bit address, allowing true XIP (execute in place) operation. A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device ID and SFDP Register, a 64-bit Unique Serial Number and three 256-bytes Security Registers. Bulk Order Page for 10pcs or more
