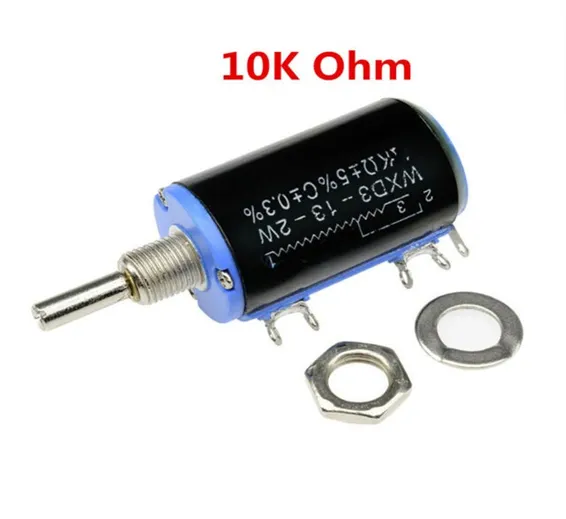

Sourcing Map WXD3-13-2W-10K ohm 2W 4mm Shaft Multi Turn Rotary Wire Wound Potentiometer

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SB 59,TMD5,Th2,KRT

Rs.350 Rs. 438

Wirewound Resistor

The resistive element exists out of an insulated metallic wire that is winded around a core of non-conductive material. The wire material has a high resistivity and is usually made of an alloy such as Nickel-chromium (Nichrome) or a copper-nickel-manganese alloy called Manganin

Features:

  1. 2W Rated Power
  2. 10 K ohm Resistance
  3. 5% Tolerance
  4. Potentiometer.

Specification:

  1. Product Name : Wire Wound Potentiometer;
  2. Model : WXD3-13-2W-10K;
  3. Technology : Wire Wound
  4. Terminal Number :
  5. Rated Power : 2W;
  6. Resistance Value : 10K ohm
  7. Tolerance : ±5%; Body Size : 37 x 20mm / 1. 5" x 0. 8"(L * D); Screw Thread Dia. : 8mm / 0. 31"
  8. Shaft Diameter : 4mm / 0. 16"
  9. Shaft Length : 12mm/0. 47"
  10. Total Length : 58mm/ 2. 3"

Package Includes:

  • 1 x Sourcing Map WXD3-13-2W-10K ohm 2W 4mm Shaft Multi-Turn Rotary Wire Wound Potentiometer
