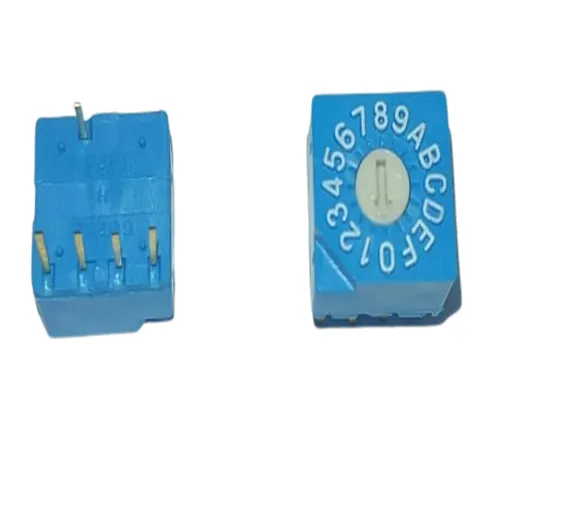

This is BCD Coded Rotary Switch 16-Position. DIP rotary dial-up to 16 positions 0-F code switch. I
- Molded-in terminals and fully sealed construction.
- Standard 2.54mm pin spacing.
- All plastics UL 94V-0 grade fire retardant.
- Reliable contact and long-term stability.
- Hexadecimal (16 positions).
- Real and complementary codes available.
- Pin-out compatible with most of the current equivalents.
Type of switch encoding switch
Kind of encoding switch HEX/BCD
Stable positions number 16-position
Number of positions 16
Operating temperature -25...80°C
Leads for PCB
Max. contact resistance: 200m?
DC contacts rating @R 0.025A / 24VDC
Min. insulation resistance 100M?
Terminal pitch 2.54mm
Switches features without knob
Body dimensions 9.9 x 9.8 x 4.5mm
Manufacturer series A6RV
1 piece of 16 position rotary encoder
