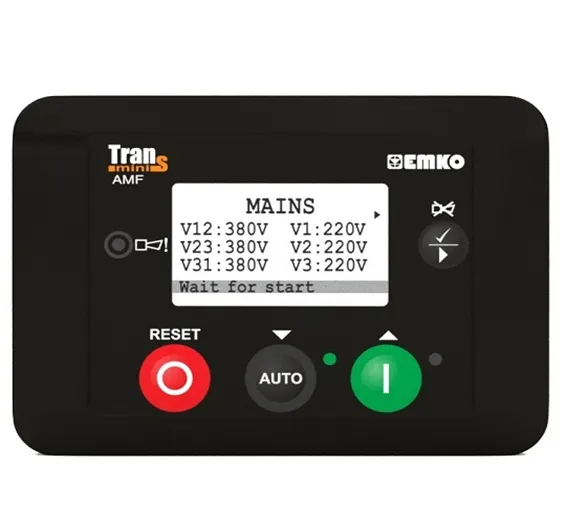

Trans mini-AMF Automatic Genset Controller with Transfer Switch EMKO Automatic Mains Failure Unit AGC Generator Controller in Pakistan

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD,Th,KRT

Rs.15000 Rs. 18750

Trans mini-AMF Automatic Genset Controller with Transfer Switch from EMKO provides for automatic transfer of a load from mains to generator in the event of a mains failure. Intended for unattended operation, it is able to detect failure of any phase of the mains and to start and switch over to a generator if the mains voltage goes outside pre-set limits. Both automatic and manual control is possible. A test mode is also available which allows the generator to be run without taking the load. The AGC unit calculates engine RPM from Magnetic Pickup sensor input (Trans-MiniAMF.MPU devices only) and/or generator voltage signal.

SPECIFICATIONS

LCD Languages English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian Inputs 3x Configurable digital, 3x Analogue senders, Magnetic Pickup, Charge Alternator D+(WL) input Outputs 6x Configurable Transistor, Mains and Generator Contactor Outputs Current Measurement 1 phases CT inputs for Load Current, 1x CT input for Earth Current Voltage Measurement 3 phases for Mains, 1 phases for Alternator Case Dimensions 111mm x 81mm x 61mm Protection Class NEMA 4X IP65 at front side Operating Range DC Battery Supply range 8 to 32Vdc, max.operating current is 360mA Sender Measurement 0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm Cabin.Temp.Measuremet Operating / Storage Temp. -20°C with +70°C / -40°C with +80°C Expansions Internal Parameter configuration via RS-232 serial communication Approvals CE, GOST-R

Features:

  1. Automatic Genset Controller with Transfer SwitchingCanBus J1939 ECU communication
  2. Remote Start/Stop, Speed and Idle mode control via J1939
  3. Power factor measurement for 1 phases
  4. Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc...
  5. Speed sensing from alternator voltage or magnetic pickup
  6. SPN, FMI and OC values reading from engines via J1939

Package includes:

1x Genset Controller
