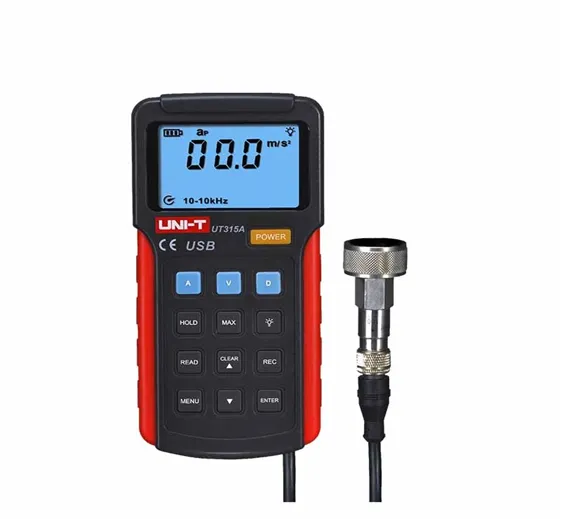

UNI-T UT315A Vibration Tester
UT310 series handheld vibration testers can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use these to monitor equipment status and ensure normal operation.
SKU: TCBOX74
Ask Price
Technical Specifications of UNI-T UT315A Vibration Tester:
Specifications | |
Model | UT315A |
Acceleration (O-P) | 0~199.9m/s²;Frequency response: 10Hz-10kHzAccuracy: ±(5%+0.2m/s²) |
Velocity (RMS) | 0~19.99cm/s;Frequency response: 10Hz~1kHzAccuracy: ±(5%+0.02cm/s) |
Displacement (P-P) | 1~1.999mm;Frequency response: 10Hz~500HzAccuracy: ±(5%+0.002mm) |
Features | |
Data hold | √ |
Low battery indication | √ |
Auto power off | √ |
Battery life | Continuous measuring time > 8 hours |
Display count | 2000 |
General Characteristics | |
Power | 9V battery (6F22 ) |
Product color | Red and grey |
Product net weight | 395g |
Product size | 166mm x 80mm x 30mm |
Standard accessories | Battery, tool box |
Standard individual packing | Gift box, English manual |
Standard quantity per carton | 1pcs |
Standard carton measurement | 305mm x 240mm x 85mm |
Standard carton gross weight | About 1.2kg |
