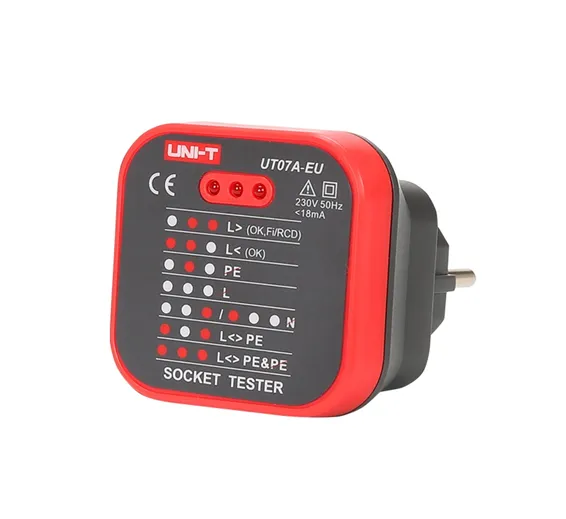

UNI-T UT07A-EU Socket Tester
UT07 series socket testers can check socket-wiring errors. These tools are widely used in commercial and residential areas. UT07B testers also include the leakage test feature to check whether circuit breakers are working properly.
SKU: TCBOX74
Ask Price
UT07 series socket testers can check socket-wiring errors. These tools are widely used in commercial and residential areas. UT07B testers also include the leakage test feature to check whether circuit breakers are working properly.
Technical Specifications of UNI-T UT07A-EU Socket Tester:
| Specifications | ||
| Model | UT07A-EU | |
| Operating voltage | 230V | |
| Operating current | ＜18mA | |
| Operating frequency | 50Hz~60Hz | |
| Indications | OK, leakage test passed | |
| OK | ||
| Missing earth | ||
| Missing live | ||
| Missing neutral | ||
| Live earth reverse | ||
| Live earth reverse and missing earth | ||
| General Characteristics | ||
| Product color | Red and grey | |
| Product net weight | 79g | |
| Product size | 65mm x 65mm x 61mm | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 48pcs | |
| Standard carton measurement | 430mm x 330mm x 365mm (0.052 CBM per standard carton) | |
| Standard carton gross weight | 5.8kg | |
