SPO2 Sensor MAX30100 Pulse Oximeter Heart Rate Sensor Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SB01,D72,IMP50,Th10,KRT

Rs.350 Rs. 438

The MAX30100 is an integrated pulse oximetry and heart rate monitor sensor solution. MAX30100 combines two LEDs, a the photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.

Applications of MAX30100:

  1. Wearable Devices
  2. Fitness Assistant Devices
  3. Medical Monitoring Devices

Technical Specifications of MAX30100;

  1. Operating Voltage: 1.8v – 5.5v
  2. Interface Type: I2C Serial Intergace
  3. Module Dimensions: 18.8mm (L) x 14.4mm (W) x 3.0mm (H)
  4. Module Weight: 1.2g (Header + module)

Pinouts of MAX30100

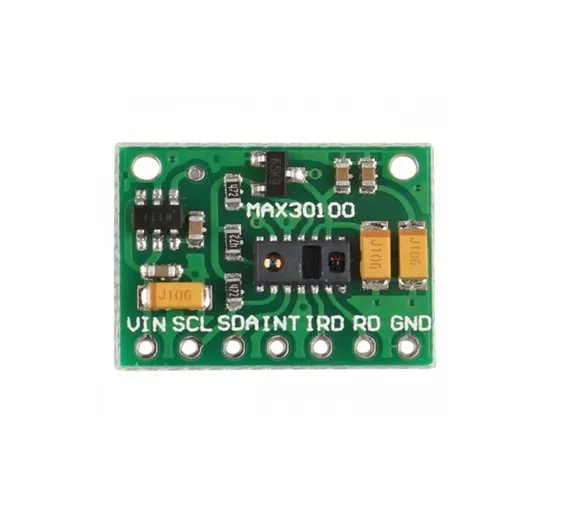

Pin No. Signal Name Description 1 VIN 1.8V – 5.5V Power Input 2 SCL I2C Serial Clock 3 SDA I2C Serial Data 4 INT MAX30100 Interrupt 5 IRD IR LED Cathode and LED Driver Connection Point. Leave floating in circuit. 6 RD Red LED Cathode and LED Driver Connection Point. Leave floating in circuit. 7 GND 0V / Referrence Voltage

Documents and Download

  • MAX30100 Device Datasheet
  • MAX30100 Arduino Library
  • MAX30100 Module Instructable
  • Another great how to use MAX30100 article

Package Includes

  • 1x Pulse Oximeter and Heart-Rate Sensor Module for Wearable Health
  • 1x 7 pin male-male header
