TCS34725 Color Sensor module in Pakistan
Sensors

TCS34725 Color Sensor module in Pakistan

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SB 109,,D86,TMD10,Th5,KRT

Rs.800 Rs. 1000

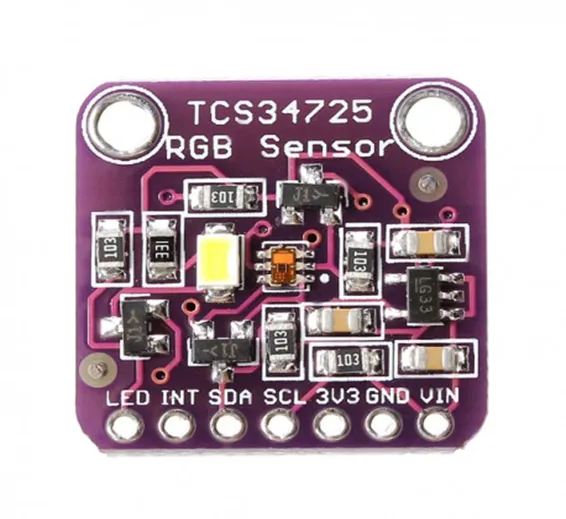

The CJMCU-34725 TCS34725 Color Sensor RGB Development Board Module provides digital return values for red, green, blue (RGB) and bright light sensing digital Mingguang induction return value. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components. So that color management more accurate. It has high sensitivity, wide dynamic range, and IR shading filters. The TCS3472 ideal for color-sensitive component solutions under varying light conditions and through attenuating materials.

High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 become ideal lighting conditions change and through color sensitive element attenuating materials under conditions of a solution.

Specifications and Features:

  1. Model Number: TCS34725
  2. Dimensions: 20.5 x 20.5 mm
  3. PCB Thickness: 1.70 mm
  4. PCB Color: blue
  5. The TCS3472 device provides digital return values for red, green, blue (RGB) and bright light sensing
  6. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components, so that color management more accurate
  7. The high sensitivity, wide dynamic range, and IR shading filters make the TCS3472 ideal for color-sensitive component solutions under varying light conditions and through attenuating materials

Attachments and Links:

TCS34725 Datasheet:

Demo Video:

Package Includes:

1 x CJMCU-34725 TCS34725 Color Sensor RGB Development Board Module

1 x 7*1 Burg connector Pins(Straight)
