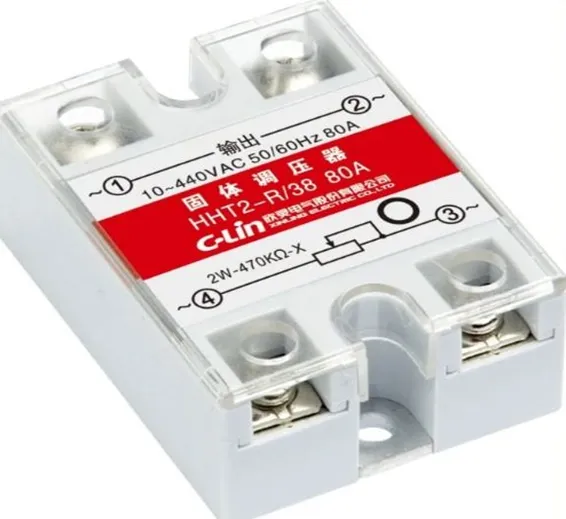

Solid State Relay 80A

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: TMD10,Th5,KRT

Rs.1200 Rs. 1500

Solid State Relay 80A is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. Solid State Relay 80A consist of a sensor which response to an appropriate input (control signal). Solid State Relay 80A which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts.

Specifications:

Load current

80A

Load voltage

10-240VAC

Control voltage

1MO 1/2W / 220V AC

On state leakage current

=2mA

Off-state time

=10mS

Dielectric strength

2500VAC

Insulation resistance

1000MO500VDC

Ambient temperature

-30°c ~ 75°c

Mounting method

bolting

Indicator

LED

Weight

135g

Model number

HHT2-R 22 80A series

Rated input control voltage

Variable resistor

Input resistance

470KO 2W potentiometer

Wattage of VR

1/4 W min

Pick-up or drop-out time

10ms max

Control type

Phase control

Input-ON indication

LED

On-state leakage current

2mA max

On-state voltage drop at Imax

1.5Vac

Matched heat sink

=40A: FHSI01-50, =60A: FHSI02-50, =120A: FHSI03-100

Matched thermal grease

HZ-KS101

Dielectric strength

2500VAC 50/60Hz for 1 minute

Insulation resistance

500 MO min at 500 VDC

External dimensions

62x45x23.5mm

Terminals

Screw

Operational temperature

-30 to 75?

Operational humidity

95% max no condensation

Solid State Relay 80A Advantages:

  1. Special general circuit design for large current, high-quality circuit board
  2. Use copper terminals for big current, increase the safety of connection and use
  3.  Use a pure aluminum base plate, with better performance and long life.
  4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.

Buy Solid State Relay 80A at Pakistan Best Online Store at cheap price. Here you get the best SSR modules. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan

Package Includes:

1 x 80A Solid State Relay
