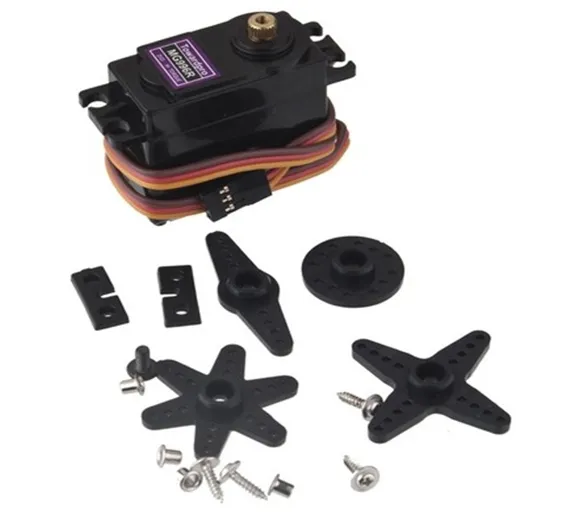

MG946R MG946 R 180 Degree Metal Gear Servo Motor In Pakistan MG946R Digital RC Servo Motor Metal Gear Torque 13Kg for Arduino/Raspberry-Pi/Robotics. MG946R Towerpro Digital Metal Servo 13KG High torque. It is upgraded version of TowerPro MG945. The new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model. It is an original equipment manufacturer (OEM product) of TowerPro MG995 servo. There are many counterfeit servos of TowerPro from China dealers selling on eBay, Amazon and Alibaba websites. If the suppliers removed “TowerPro” logo from the photos and the products description, they are selling counterfeits low quality servo.

Specification:

  1. Weight: 55g
  2. Rotation: 180 degree
  3. Dimension: 40.7×19.7×42.9mm
  4. Stall torque: 10.5kg/cm (4.8v); 13kg/cm (6v)
  5. Operating speed: 0.20sec/60degree(4.8v);0.17sec/60degree(6.0v)
  6. Operating voltage: 4.8-6.6v
  7. Temperature range: 0- 55deg
  8. Servo Plug: JR (Fits JR and Futaba)
  • Gear Type: Metal gear
  • Dead band width: 1us
  • Power Supply: Through External Adapter
  • servo wire length: 32cm
  • Current draw at idle 10MA
  • No load operating current draw 170MA
  • Stall current draw 1200MA
  • Servo Plug: JR (Fits JR and Futaba)
  • Package includes:

    • 1x Metal Gear Servo Motor
