Vibration Motor Mini Vibrator Motor

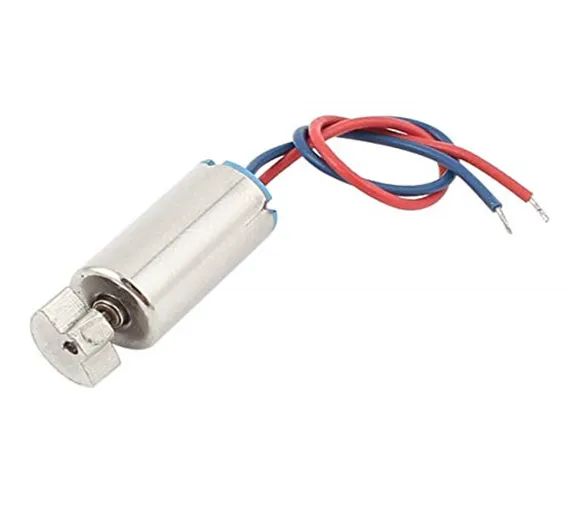

Mini vibration motor.

This is a small vibration motor for arduino , stm , pic and other microcontroller related projects. It can be used for vibration related project like a blind stick, etc.

Specifications

1. Operating Voltage: 2.2 ~ 3.6V DC
2. Rated Voltage: 3.0V DC
3. Rated Speed: 12,000 @ 2,500rpm
4. Rated Current: 90mA max
5. Stall Current: 120mA max
6. Starting Voltage: 2.0V DC max
7. Mechanical Noise: 50db(A) max
8. Weight: 2g approx.
9. Dimension: 12 x 6 x 3.6mm

Documents

• datasheet

• SKU: SKU: SB 117,,D118,TMD10,Th5,KRT
• /
• Category: Robotics
• /
• Tags: Vibration Motor Mini Vibrator Motor
