iMAX B6 Mini 80W 5A Digital DC Battery Balance Charger XT60 Plug

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: RAWLIXiMA

Rs.4000 Rs. 5000

iMAX B6 Mini 80W 5A Digital DC Battery Balance Charger is smartest battery balance charger. This DC Battery Balance Charger is microprocessor controlled, delta-peak sensitivity and individual cell balancing. Battery redistribution is sometimes distinguished from battery balancing by saying the latter stops at matching the cell's state of charge (SOC) only at one point (usually 100% SOC) so that the battery's capacity is only limited by the capacity of its weakest cell which is also categorized as passive balancing. A full battery management system (BMS) might include active balancing as well as temperature monitoring, charging, and other features to maximize the life of a battery pack. So, this iMAX B6 Mini 80W 5A Digital DC Battery Balance Charger complete all needs of battery and best choice for you.

Features of iMAX B6 Mini 80W 5A Digital DC Battery Balance Charger XT60 Plug:

  1. B6 mini lighter than B6
  2. Microprocessor controlled
  3. Delta-peak sensitivity
  4. Individual cell balancing
  5. Li-ion, LiPo and LiFe capable
  6. Ni-Cd and NiMH capable
  7. Large range of charge currents
  8. Store function allows safe storage current
  9. Time limit function
  10. Input voltage monitoring. (Protects car batteries at the field)
  11. Data storage (Store up to 5 packs in memory)
  12. Battery break in and cycling.

Specifications of iMAX B6 Mini 80W 5A Digital DC Battery Balance Charger XT60 Plug:

  1. Input Voltage: 11-18v
  2. Circuit power: Max Charge: 80W / Max Discharge: 5W
  3. Charge Current Range: 0.1-5.0A
  4. Discharge current range: 0.1-1.0A
  5. Ni-MH/NiCd cells: 1-15
  6. Li-ion/Poly cells: 1-6
  7. Pb battery voltage: 2-20v
  8. Dimensions: 103x83x30mm
  9. Weight: 450 grams

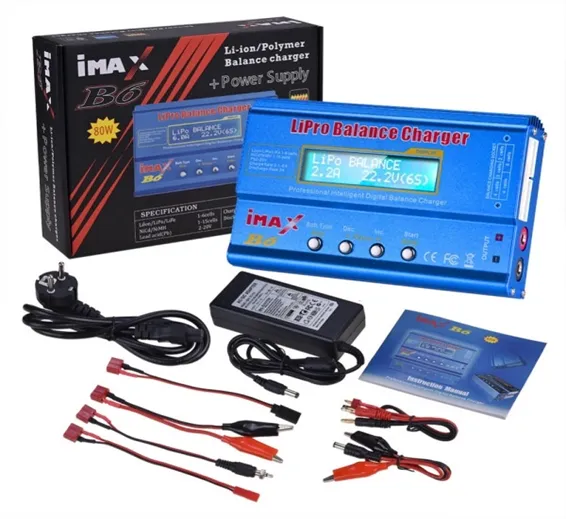

Package Includes:

  1. 1x 12v 5A Adapter
  2. 1x alligators to dc female jack
  3. 1x probes to dc T male connector
  4. 1x alligators to dc T female jack
  5. 1x probe with a nut to dc T female
  6. 1x 2-pin female flat L jack to dc T female jack
  7. 1x instruction manual
