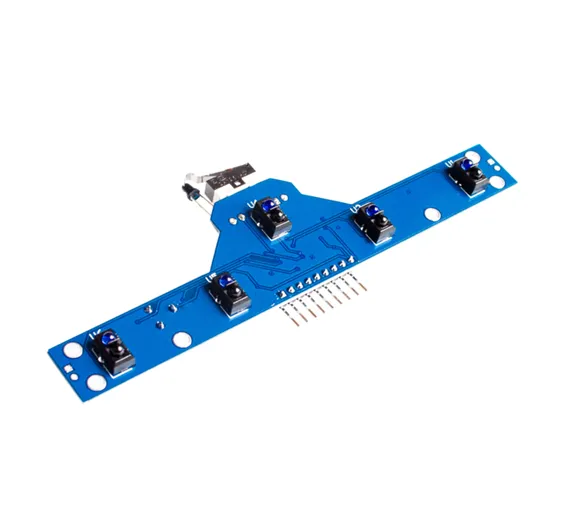

5 Channel Line Tracking Sensor Module (BFD-1000) is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily. BFD – 1000 specifically designed as a black line (white) XunQu, especially suitable for the complex of the black and white line, cross black and white line detection, it has 6 roads high sensitivity infrared sensor (5 escapes patrol, 1 road), to the recognition of black and white line accurately.
- 5 channel high sensitivity sensor
- High accuracy for tracking the black line.
- Distance sensor at the front, distance can be adjusted
- Special touch sensor design, making the robot design simple
- Digital output signal
- Indicator LEDs
- Detection distance: 0 – 4 cm (black and white line sensors), 0 – 5 cm (adjustable distance detection)
- Input voltage: 3.0 V – 5.5 V
- Output form: digital output (high and low level)
1xBFD-1000 5 Way Line Tracking Sensor Module Line Following Module
