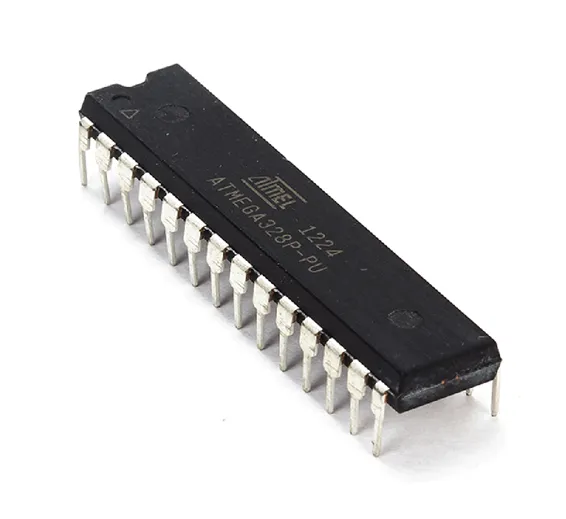

Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: DBS174,TMD,Th50,KRT

Rs.350 Rs. 438

Here you getAtmel atmega328p arduino microcontroller ic in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over pakistan. Online Shopping website for Atmel atmega328p arduino microcontroller ic's. Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller is a high performance, low power controller from Microchip. Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller like the ATmega168, with double the flash space.

  • 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC.
  • Runs up to 20MHz with external crystal.
  • The package can be programmed in circuit. 1.8V to 5V operating voltage. ATMEGA328P is an 8-bit microcontroller based on AVR RISC architecture. It is the most popular of all AVR controllers as it is used in ARDUINO boards.

    Features of Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller:

    • Practically does the work for you, durable and useful.
    • Good reliability and lifelong lasting time are useful and durable.
    • Only an ATmega328 in DIP package, without the optiboot bootloader pre-loaded.
    • You have to use code in your custom embedded project.
    • It's like the ATmega168, with double the flash space.
    • 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC.
    • Runs up to 20MHz with external crystal.
    • Package can be programmed in circuit. 1.8V to 5V operating voltage!
    • To get this chip working with IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial connection.

    Specifications of Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller:

    1. 4.5V-5.5V operating range
    2. Up to 20MHz
    3. Part: ATMEGA328P-AU
    4. 32kB Flash program memory
    5. 1kB EEPROM
    6. 2kB Internal SRAM
    7. Two8-bit Timer/Counters
    8. One16-bit Timer/Counter
    9. RTC with separate oscillator
    10. 6 PWM Channels
    11. 8 Channel 10-bit ADC
    12. Serial USART
    13. Master/Slave SPI interface
    14. 2-wire (I2C) interface
    15. Watchdog timer
    16. Analog comparator
    17. 23 IO lines
    18. Data retention: 20 years at 85oC/ 100 years at 25oC

    Package includes:

    • 1 x Atmel ATMEGA328P 8 Bit 28 Pins Microcontroller

    Documents:

    • Datasheet
    • Atmel Product Page
