Microcontroller

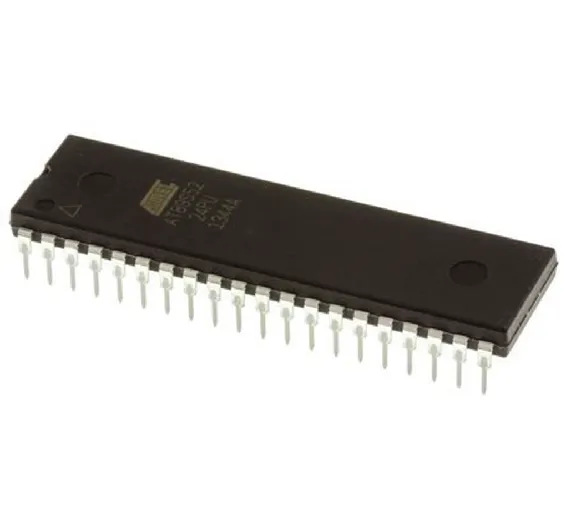

AT89S52 8052 IC DIP Mount 8 Bit Microcontroller

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: DBS173,TMD10,Th5,KRT

Rs.200 Rs. 250

AT89S52 8052 IC DIP Mount 8 Bit Microcontroller Features – AT89S52 Compatible with MCS-51 Products 8K Bytes of In-System Reprogrammable Flash Memory Fully Static Operation: 0 Hz to 33 MHz Three-level Program Memory Lock 256 x 8-bit Internal RAM 32 Programmable I/O Lines Two 16-bit Timer/Counters Eight Interrupt Sources Programmable Serial Channel Low-power Idle and Power-down Modes 40-pin DIP AT89S52 madeby ATMEL is Low-power, high-performance CMOS 8-bit microcontroller with 8KB of ISP flash memory. The device uses Atmel high-density, nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. On-chip flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. This powerful microcontroller is suitable for many embedded control applications.

AT89S52- 8 bit Microcontroller with 8kb Flash – 24Mhz

Based on 1 reviews

5

overall

Add a review

Abdul wahab - March 26, 2021
