Current Transformer

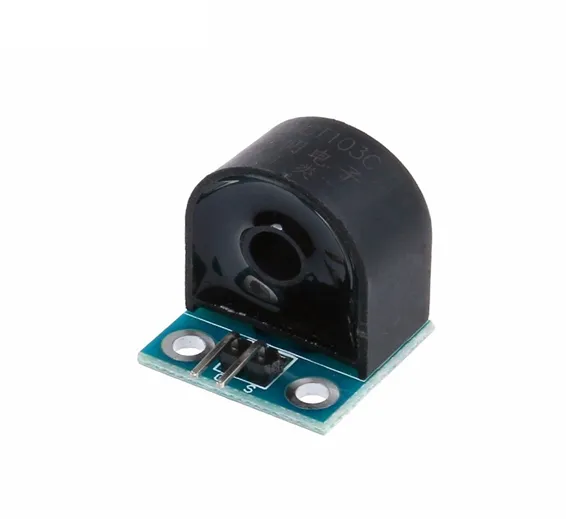

5A Range AC Current Sensor Module In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B 177,,D07,IMP10,Th5,KRT

Rs.300 Rs. 375

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA. It has

  • Onboard
  • sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.

    Package Includes:

    1 x 5A range of single-phase ac current sensor module.

    Specifications and features:

    1. Dimensions: 28 x 12 x 15 mm(LxWxH).
    2. Weight: 4 gm.
    3. Onboard
    4. Rated input current: 5A
    5. Rated output current: 5mA
    6. Change: 1000: 1
    7. The linear range: 0 ~ 10A (100 ohms)
    8. Linearity: 0.2%
    9. Precision Rating: 0.2
    10. Uses isolation voltage: 3000V Measurement
    11. Sealing material: epoxy resin
    12. Operating temperature: – 40 Celsius to + 70 Celsius
    13. Onboard
    14. sampling resistor and micro-precision current transformer
    15. Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA
