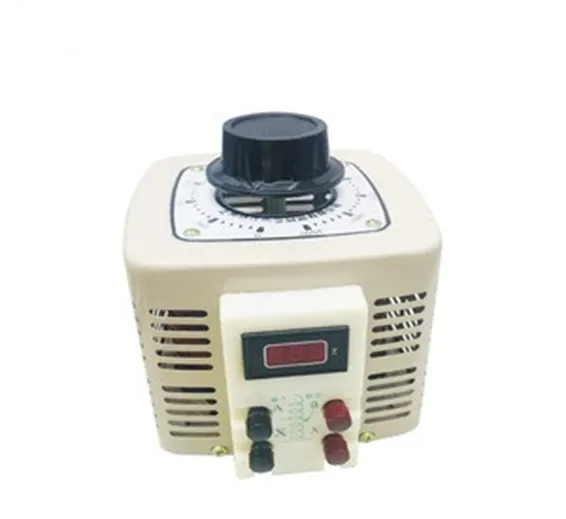

Tdgc-3kva Single Phase Manual Contact Voltage Transformer

Function of Manual Voltage Regulator

1. Voltage regulation and speed regulation
2. Temperature Controlling

Structure of Manual Voltage Regulator

1. Circular steel core with copper coil inside, metal shell outside
2. electrical brush change its location for right ratio.

Technical Parameter of Manual Voltage Regulator Model TDGC3 TDGC KVA 0.2~15 0.5~30 Input voltage V 220 Output voltage V 0~250 Max.voltage lower V 5(COSφ=1) Temperature rise °C <60 Frequency Hz 50/60 Insulation resistance MΩ ≥5 Withstand votlage V/1min 2000 Insulation level A Maxumum rated current A 0.8(0.2KVA), 2(0.5KVA), 4(1KVA), 8(2KVA) 12(3KVA), 20(5KVA), 28(7KVA), 40(10KVA) 60(15KVA), 80(20KVA), 120(30KVA)
