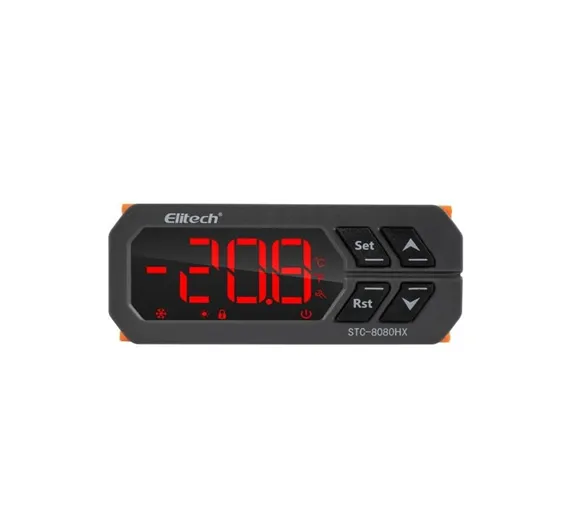

STC-8080HX Microcomputer Temperature Controller Elitech in Pakistan
SKU: 638308819619239244
Rs.4800
Rs. 6000
Elitech STC-8080HX-02 Thermostat Temperature Controller main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when the temperature exceeds
STC-8080HX-02 Microcomputer Temperature Controller Features:
- Middle-low temperature cold storage, wind cooling cabinet, kitchen cabinet, operating console, refrigerating display cabinet
- Refrigerating, timing defrost modes optionally
- Exceeding temperature alarm
- Temperature upper and lower limit setting
- Compressor delay protection adjustment (STC-8080HX-02)
- Sensor error occurs, the compressor turns on/off with proportional time
- Refrigeration,Defrost,1NTC,Temperature Calibration
Specifications:
- 71mm x 29mm hole installlation
- Product size: 80.5mmx34.9mmx65.8mm
- Power supply: 220vac + 10% / - 15%, 50 / 60hz.
- Power consumption: < 3w
- Temperature measuring range: - 50c ~ + 99c
- Temperature control range: ~ 40c ~ + 50c
- Resolution: 1c
- Accuracy: + 1c when temperature - 40c ~ + 50c, + 2c at others
- 10a / 277vac csn drive single phase compressor relay capacity of compressor
- Relay capacity of defroster: 10a / 277vac
- 1 minute relay time sensor error
- Type sensor: Ntc sensor
- Ipx4 front panel safe level:
- Operating temperature: 0c ~ 60c
- Temperature storage: - 30c ~ + 75c
- Relative humidity: 20% ~ 85% (no condensate)
rawlix.com is the Best Online Shopping website for STC-8080HX-02 Microcomputer Temperature Controller (Elitech) in Pakistan. Here you get STC-8080HX-02 Microcomputer Temperature Controller (Elitech) in Pakistan at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
- 1 x STC-8080HX-02 Microcomputer Temperature Controller (Elitech)
