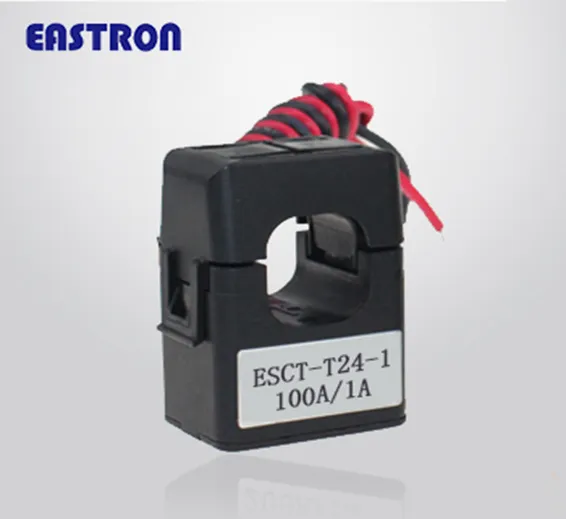

SPLIT CORE CT ESCT T24 Current Transformer
SKU: IMP,LS,TH,KRT133
The Eastron ESCT-T series of split core current transformers are designed for fast and easy installation. The split core deign permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken off line and disconnected for CT installation. This method permits a safer easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary circuit.
Specifications
Frequency
50-60Hz
Rated current
5A to 600A loads
Rated output
5A or 1A ( AC)
Accuracy
±1% from 20% to 120% of rated current
Phase angle
less than 2 degrees at 50% of rated current
Insulation voltage
600Vac
Dielectric strength
2.5KV/ 1mA/1min
Operating temperature
-15℃ to 60℃
Operating humidity
＜ 85%
Case material
PC/UL94-V0
Bobbin
PBT
Core
Permalloy
Internal structure
Epoxy
Leads
UL 1015, Twisted Pair, 22AWG
Applications
- Current measurement, monitoring and protection for electrical wiring and equipment
- Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation.
- Current, power and energy monitoring device
- Relay protection device
Package Includes
- 1 x SPLIT CORE CT ESCT-T24 Current Transformer
