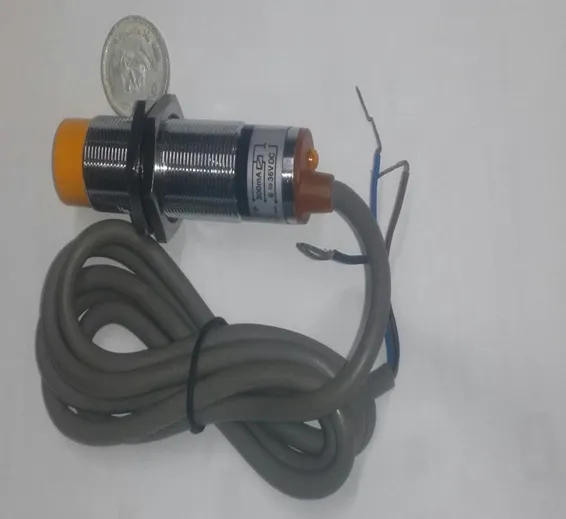

Proximity Sensor E2E-X10ME1 OMRON in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: D 01,B 249,LS10,Th5,KRT

Rs.950 Rs. 1188

Proximity Sensor E2E-X10ME1 OMRON proximity sensor is to perceive occurrence of any object without being in contact with it. A proximity sensor makes a field around it by emitting electromagnetic radiations. The beam of electromagnetic radiations traces any object or hurdle in its way. The term ‘target’ is used for the object that a proximity sensor intuits in its path. The sensor looks for any alteration made in its field. Target usually replaces a certain beam of the field or hurdles its projection. Different fields or sensors are used to detect different targets.Proximity Sensor E2E-X10ME1 OMRON

Application:

  1. rpm measurement,
  2. positioning,
  3. limiting,
  4. Detecting Dynamic Motion
  5. conveyor system

18mm tip size Voltage range 6 to 36 DC Type NPN Working distance 5mm

Sensing head size M18 Type Unshielded Sensing method Inductive type Sensing distance 10 mm-10% to +10% Setting distance 0 to 8 mm Operation mode NO Type Unshielded Sensing method Inductive type Sensing distance 10 mm-10% to +10% Setting distance 0 to 8 mm Differential distance 10% Max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 30 x 30 x 1 mm Power supply voltage 12 to 24 VDC ripple(p-p) 10% Max. Operating voltage range 10 to 30 VDC Current consumption 13 mA max. Control output (Output type) NPN voltage-current output Control output (Switching capacity) 0 to 200 mA Indicator Operation indicator (red) Operation mode NO Sensitivity setting – Self-diagnostic output – Protective circuit Surge suppressor Output short-cut protection Power supply reverse polarity protection Standard or Different frequency Standard Ambient temperature Operating: -40 to 85 ℃ Storage: -40 to 85 ℃ Ambient humidity Operating: 35 to 95%RH Storage: 3595%RH Temperature influence +/- 10% Max. of sensing distance in temperature range of -25 to +70 CEL +/- 15% Max. of sensing distance in temperature range of -40 to +85 CEL (As the basis for sensing distance of 23 CEL Voltage influence +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage) Insulation resistance 50 MOhm Min. at 500 VDC between charged parts and the case Dielectric strength 1000 VAC 50/60 Hz for 1 minute between charged parts and the case Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance 1000 m/s**2 for 10 times each in X, Y, and Z directions Degree of protection IEC60529: IP67 Company standard: Oil-proof Connection method Pre-wired models(Cable length: 2 m) Weight (Packed state) approx. 150 g Material (case) Brass nickel plating Material (sensing surface) PBT Material (clamping nuts) Brass nickel plating Material (toothed washer) Iron zinc plating

Package includes:

1xProximity Sensor E2E-X10ME1 OMRON
