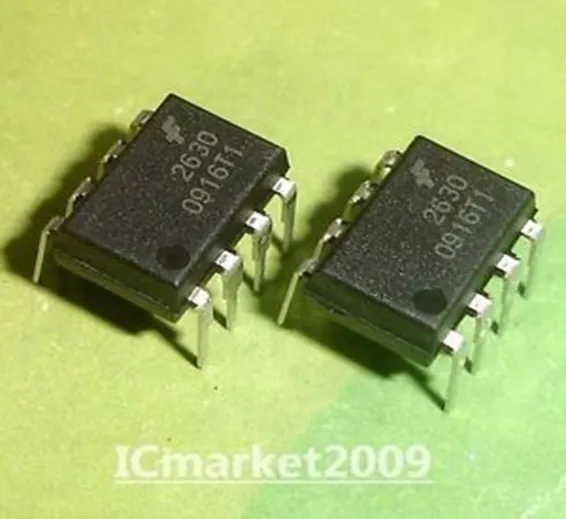

HCPL2630 2630 optocoupler in Pakistan
Lights

HCPL2630 2630 optocoupler in Pakistan

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SKU: SB206,TMD10,Th5,KRT

Rs.200 Rs. 250

Applications

  • Isolated Line Receiver
  • Computer-Peripheral Interfaces
  • Microprocessor System Interfaces
  • Digital Isolation for A/D, D/A Conversion
  • Switching Power Supply
  • Instrument Input/Output Isolation
  • Ground Loop Elimination
  • Pulse Transformer Replacement

Features

  • High Speed: 10 MBd Typical
  • LSTTL/TTL Compatible
  • Low Input Current Capability: 5mA
  • Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
  • Available in 8-Pin DIP, SOIC-8, Widebody Packages
  • Strobable Output (Single Channel Products only)
  • Safety Approval:

UL Recognized – 3750 V rms for 1 minute and 5000 V rms for 1 Minute (Option 020 only) per UL1577 CSA Approved?

  • Options available are:

020 = 5000 V rms/1 minute UL Rating Option 300 = Gull Wing Surface Mount Option 500 = Tape and Reel Packaging Option XXXE = Lead Free Option
