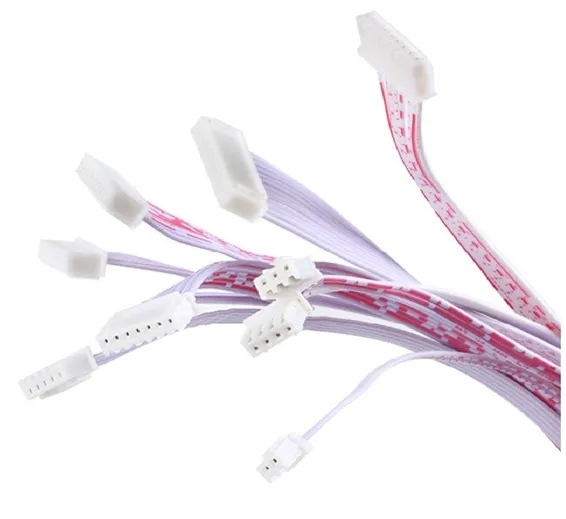

10 wires 2.54mm Pitch Female to Female JST XH Connector Cable Wire 30cm
Availability: In Stock
Advance Payment Only
SKU: B 04 , D 73,TMD20,Th5,KRT
10 wires 2.54mm Pitch Female to Female JST XH Connector Cable Wire 30cm available in eburak.com Ideal connection to simplify and make reliable the interconnections you need during your DIY realizations and assemblies. Very commonly used for PCB (Printed Circuit Board), which are electronic printed circuits requiring connectors to transmit flows and information. Specification:
- Pitch: approx. 2.54mm
- Current rating: 1A AC, DC
- Voltage rating: 125V AC, DC
- Temperature range: -25 ℃ ~ +85 ℃
- Insulation resistance: 100M Omega Min.
- Withstanding voltage: 500V AC/minute
- Wire range: AWG#24~#32
- Insulation O.D. : 1.00mm (Max.)
- Fine workmanship.
- Easy to use.
- Straight Connectors: 10 PIN
- Connector Height: 2.54 mm
- Type of wiring: AWG 26 (0,129 mm²)
- Length: 30c
2p,3p , 4p , 5p, 6p ,….. 10p available.
