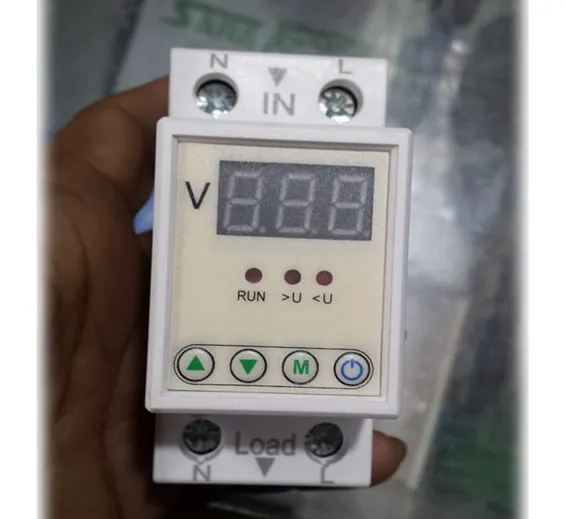

Digital display self recovery over-voltage protector is mainly used for photovoltaic grid connected,household and similar low-voltage distribution lines. It can automatically disconnect when there is overvolatage,under voltage or voltage loss in the line,and can automatic detection of wire voltage.It is a protector that canautomatically closed when the line of electricity back to normal. Features:
- The over voltage and under voltage protection threshold is adjustable,which is convenient for the user to set the voltage protection range in real time according to the power consumption environment.
- It can cut off the line in time when the over voltage occurs,and automatically connect the line after delay when the line is restored to normal without manual operation.
- Display range of effective voltage 70-400V
- With stand lightning surge voltage:5KV
- Electrical parameters
- Rated working voltage:AC230V/50Hz
- Rated working current:40A and 63A
- Maximum short-circuit withstand current:3000A below 40A,4500A above 50A
- Overvoltage protection value:AC230V-AC275V,factory default 275V
- Ambient temperature
- Action time:0-30S
- Power off time:2S(set 0-180S)
- Recovery time:2S(set 0-30s)
1xV-Protector Protector VP-40A Voltage Relay Protective Device
