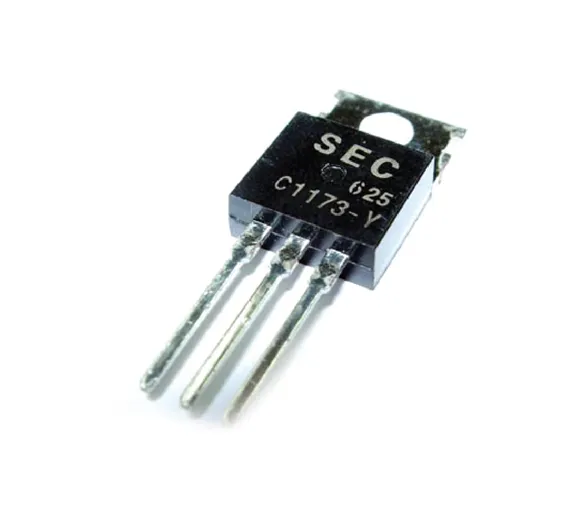

C1173 NPN TRANSISTOR IN PAKISTAN

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: DBS86,TMD10,Th3,KRT

Rs.25 Rs. 31

DESCRIPTION ·With TO-220 package ·Complement to type 2SA473 ·Collector current :IC=3A ·Collector dissipation:PC=10W@TC=25? APPLICATIONS ·Low frequency power amplifier ·Power regulator PINNING PIN DESCRIPTION 1 Base 2 Collector;connected to mounting base 3 Emitter Absolute maximum ratings (Ta=25? ) SYMBOL PARAMETER CONDITIONS VALUE UNIT VCBO Collector-base voltage Open emitter 30 V VCEO Collector-emitter voltage Open base 30 V VEBO Emitter-base voltage Open collector 5 V IC Collector current (DC) 3 A PC Collector power dissipation TC=25? 10 W Tj Junction temperature 150 ? Tstg Storage temperature -55~150 ?
