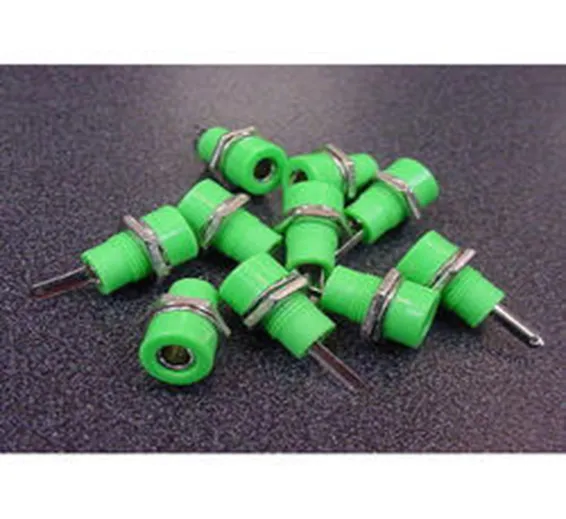

Banana Test Connector

Features:

1. Insulator color=Green
2. 10A DC500V, Wire soldering terminal
3. Insulator : Nylon UL94V-2
4. Metal : Brass with Nickel plated
5. Overall outside dimension approx : φ11x22mm, Dia xL
6. Socket hole : φ4.0x15mm, Dia xD (0.16"x0.6")
7. Cut-out hole : φ8.0x6.5mm
8. Operating temperature : -20~+80℃
9. Current/Voltage Rating : 10A DC500V/AC250V max
10. Insulation : 100MΩ min @DC500V

• SKU: B02,TMD20,Th5,KRT
• /
• Category: Components
• /
• Tags: Banana Test Connector
