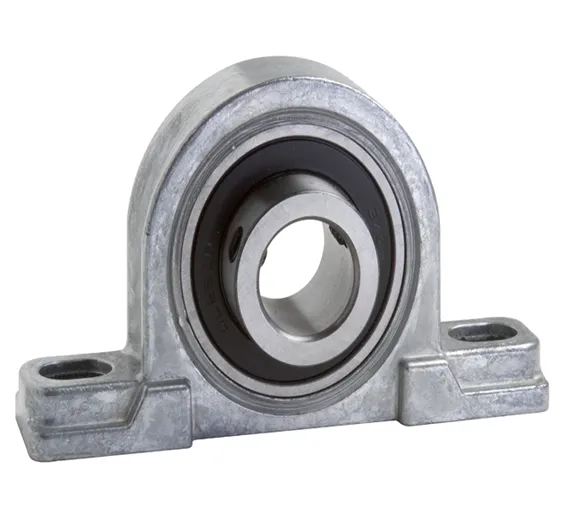

Ball Bearing PBDC-BL-Series 7.4mm, Die-Cast Housing, Rigid Type

Clesco, Pillow Block Ball Bearing, PBDC-BL-050, Rigid, Die Cast Zinc Housing, 1/2" Bore, Ball Bearing, Die-Cast Housing, Rigid Type PBDC-BL-Series, Bearing, Pillow Block Bearing, Die Cast Housing Bearing, PBDC-BL-050, Rollers Bearing ideal for applications requiring strong load support in limited mounting area. Solid Zinc die cast housing is non-corrosive and lightweight. Securely retains bearing by pressing the lip 360 degrees over the outer race. Includes 2 set screws.

Specifications:

Brand Clesco Bearings Series PBDC-BL Max Speed 6000 rpm Weight 0.9 lbs (400 grams approx.) Bore Diameter 7.4 mm (0.291 inch) Outside Diameter 11.73 mm (0.462 inch) Bolt holes spacing 46.25 mm Type Rigid Housing Material Die Cast Zinc

Dimension:

Dimension A: 1-1/8 Dimension E: 3/8 Dimension B: 2-5/16 Dimension F: 7/16 Dimension C: 4-1/4 Dimension G: 1-5/16 Dimension D: 3-3/8
