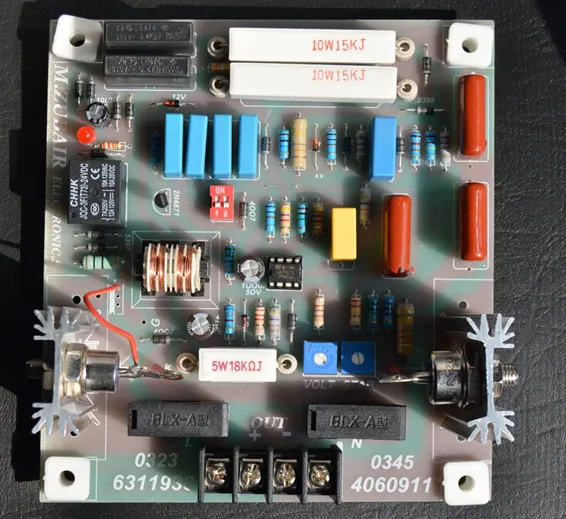

AVR Generator Automatic Voltage Regulator

An

automatic

voltage

regulator

(AVR)

is

an

electronic

device

for

automatically

maintaining

generator

output

terminal

voltage

at

a

set

value

under

varying

load

and

operating

temperatures.

It

controls

output

by

sensing

the

voltage

Vout

at

a

power-generating

coil

and

comparing

it

to

a

stable

reference.

The

error

signal

is

then

used

to

adjust

the

average

value

of

the

field

current This

Automatic

voltage

regulator

is

for

loads

up

to

90volt

and

25

amp

with

2

dip

switches

to

adjust

max

voltage

output

to

better

suit

your

needs

class='font-size-24

mb-3'>Specifications

Of

Automatic

voltage

regulator: class='font-size-14

pl-3

ml-1

text-gray-110'>

Input:220volt

ac

Output:0-90

volt@25amp

(max)

dc

Adjustable

stability

Adjustable

Voltage

regulation:

Dip

switch

for

Max

voltage

limit:

Voltage

lock:

No

switch

on:90

volt

Switch

1

on:60

volt

Switch

2

on:45

volt

Both

switch

on:45

volt

• SKU: RAWLIXAVR
• /
• Category: Semiconductor Components & ICs
• /
• Tags: AVR Generator Automatic Voltage Regulator
