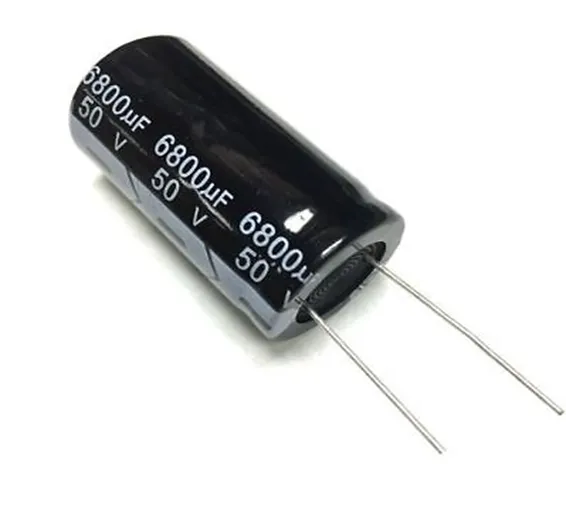

6800uf 50V Electrolytic Capacitor

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: RAWLIX680

Ask Price

These 6800uf 50V Electrolytic Capacitors are used in huge quantities, 6800uf capacitors are able to provide a large capacitance per volume than other types of capacitors. This gives them very many uses in circuits where high currents or low frequencies are involved. 6800uf 50V Electrolytic Capacitors are typically used most in applications such as LED light devices, UPS power supplies, electric vehicles, routers, high-end audio devices, photographic equipment, welding machines, etc. Like any other capacitor, it is necessary to understand the advantages and limitations of these capacitors to enable them to be used most effectively.

Features of 6800uf 50V Electrolytic Capacitor:

  1. Aluminum electrolytic capacitors specially made for audio applications
  2. Small and compact
  3. Printed with the black color letter on Gold sleeve
  4. 20% Tolerance
  5. RoHS compliant
  6. Size: 25.50mm X 51mm

Specifications of 6800uf 50V Electrolytic Capacitor:

Item Performance characteristics Operating Temperature range -40~+105℃ -25~+105℃ Rated voltage range 10~100V 160~450VDC Nominal Capacitance range 82~39000uF Capacitance tolerance ±20%(120Hz, +20℃) Leakage current 1≤3√CV or 3000(uA), which is greater. (After 5 minutes application of working voltage)

Dissipation factor

(tan δ)

Measurement frequency: 120Hz, Temperature:20℃

Rated voltage(VDC) 10 16 25 35 50 63 80~100 160~400 420~450 tan δ (max) 0.60 0.45 0.30 0.25 0.20 0.15 0.15 0.15 0.20

When the capacitance exceeds 1000uF, 0.01 shall be added every 1000uF increase

Low-temperature characteristics

Measurement frequency:120Hz

Rated voltage(VDC) 10 16 25 35 50 63 80~100 160~400 420~450 Z(-25℃)/Z(+20℃) 4 4 3 3 2 2 2 4 8 Z(-40℃)/Z(+20℃) 15 15 10 8 6 6 5 - - Load life 5000hours, with the application of a working voltage at 105℃. Capacitance change ≤±20% of the initial measured value tan δ ≤200% of the initial specified value Leakage current ≤initial specified value Shelf life 1000hours, no voltage applied, at 105℃. After the test: UR to be applied for 30 minutes, 24 to 48 hours before measurement. Capacitance change ≤±20% of the initial measured value tan δ ≤200% of the initial specified value Leakage current ≤initial specified value

Package Includes:

1 x 6800uf 50V Electrolytic Capacitor
