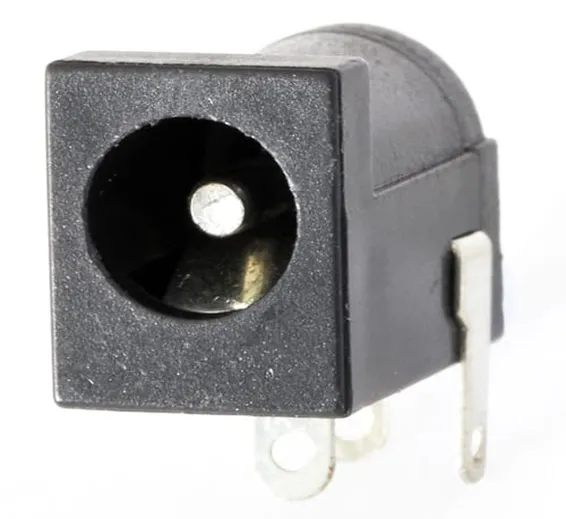

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B274,LS100,Th20,KRT

Rs.10 Rs. 13

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector is typically found on low-cost consumer electronics. DC Jack PCB Mount Internal Barrel Connector can be plugged into wall power via bulky AC wall adaptors. Wall adaptors are widely available, in a variety of power ratings and voltages, making barrel connectors a common means for connecting power to small projects.

Features of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  • This is a common barrel-type power jack for DC wall supplies.
  • Features PCB mounting, 2.1x5.5mm jack audio connector.
  • Barrel connectors are typically found on low-cost consumer electronics.
  • Barrel connectors a common means for connecting power to small projects.
  • Used widely in Media Player, MP3/MP4 player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, Smart Phone, Car Audio, etc.

Specifications of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  1. Pin Hole Diameter: 5.5 mm
  2. Center Pin Diameter: 2.1 mm
  3. Operating Temperature Range: -40° C to +55° C
  4. Rated Load: 30 VDC, 0.5 A
  5. Contact Resistance: ≤0.03 Ω
  6. Insulation resistance: ≥100MΩ, 250VDC
  7. Withstanding Voltage: 500 VAC (50Hz) / min
  8. Insertion Force: 3 N to 20 N
  9. Life: 5000 cycles

Package Includes:

1 x 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector
