Servo Motor

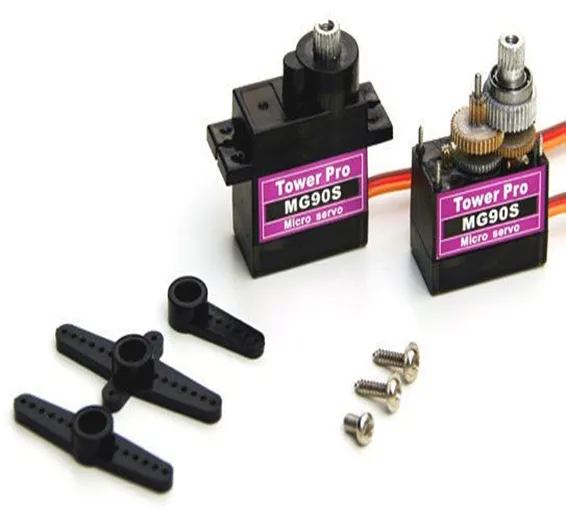

Towerpro MG90S Mini Digital 180 Degree Servo 2.2kg 0.08sec 13g

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B173,D171,IMP100,Th50,KRT119,507+528,N105

Rs.280 Rs. 350

Micro Servo Motor MG90S – Tower Pro in Pakistan:

MG90S Metal Gear RC Micro Servo For RC Model

Description: Item Name: MG90S servo Weight: about 13.4g Dimension: 22.8 x 12.2 x 28.5mm Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V) Operating Speed: 0.1sec/60degree(4.8v), 0.08sec/60degree(6v) Operating Voltage: 4.8-6.0V Motor Type: coreless motor Connector Wire Length : 175mm

Features: Micro size Great for truck, Boat, Racing Car, Helicopter and Airplane

Package Included: Towerpro MG90S Mini Digital 180 Degree Servo 2.2kg 0.08sec 13g

Testing Code

#include

Servo servo; int angle = 10;

void setup() { servo.attach(8); servo.write(angle); }

void loop() { // scan from 0 to 180 degrees for(angle = 10; angle < 180; angle++) { servo.write(angle); delay(15); } // now scan back from 180 to 0 degrees for(angle = 180; angle > 10; angle--) { servo.write(angle); delay(15); } }
