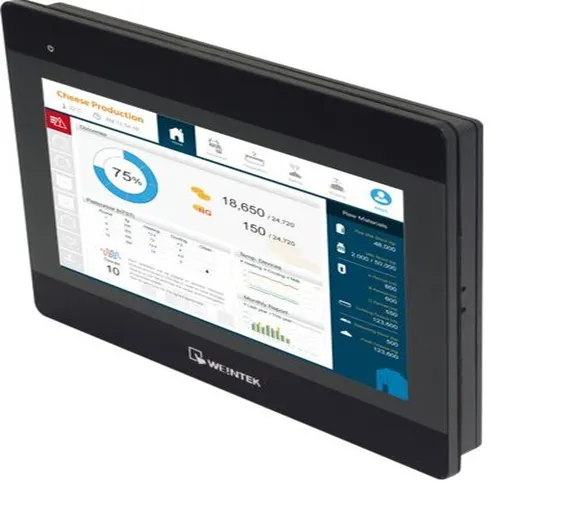

MT8102IP Weintek is TFT LCD Display.MT8102IP Weintek Boasts excellent performance with better operation experience compared to its predecessor.MT8102IP Weintek compact HMI Series-iP has upgraded in every aspect to satisfy a variety of applications.
Datasheet For MT8102IP:
https://www.ulp.rs/products/weintek%20pdf/MT8102iP1_Datasheet_ENG.pdf
MT8102IP Weintek Specifications:
For Display:
|
Display |
10.1 Inch TFT |
|
Resolution |
1024 x 600 |
|
Brightness (cd/m2 ) |
350 |
|
Contrast Ratio |
500:1 |
|
Backlight Type |
LED |
|
Backlight Life Time |
>20,000 hrs |
|
Colors |
Colors |
|
LCD Viewing Angle (T/B/L/R) |
60/60/70/70 |
For Touch Panel:
|
Type |
4-wire Resistive Type |
|
Accuracy |
Active Area Length(X)±2%, Width(Y)±2% |
Others:
|
Processor |
ARM RISC 528MHz |
|
Flash |
128 MB |
|
RAM |
128 MB |
|
SD Card Slot |
N/A |
|
USB Host |
USB 2.0 x 1 |
|
USB Client |
N/A |
|
Ethernet |
10/100 Base-T x 1 |
|
COM Port |
Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W* |
|
RS-485 Dual Isolation |
N/A |
|
CAN Bus |
N/A |
|
HDMI |
N/A |
|
Audio Output |
N/A |
|
Video Input |
N/A |
|
RTC |
Built-in |
|
Input Power |
10.5 ~ 28VDC |
|
Power Consumption |
1.3A@12VDC; 650mA@24VD |
MT8102IP Weintek Features:
- Boasts excellent performance with better operation experience compared to its predecessor
- Weintek’s compact HMI Series-iP has upgraded in every aspect to satisfy a variety of applications.
Package Includes:
- 1 x 10 Inch MT8102IP Weintek TFT LCD Screen
